DUAL-LINE LUBRICATION SYSTEMS

For Use on Large Machinery, Effective in Harsh Conditions

Dual-line systems dispense a precise, metered amount of lubricant to up to 2 000 lubrication points over long distances up to 120 m(131 yd)and more. Even if one pair of outlets becomes blocked inside one metering device, dual-line systems provide sufficient lubrication for the rest of the system’s lubrication points. Lubricant volume can be metered individually for each pair of outlets and can be monitored visually or electrically.

SKF Lincoln Industrial | Dual-Line System > How it Works

SKF dual-line lubrication systems are simple to design and easy to extend or reduce. These systems work reliably in a variety of applications and effectively in harsh conditions

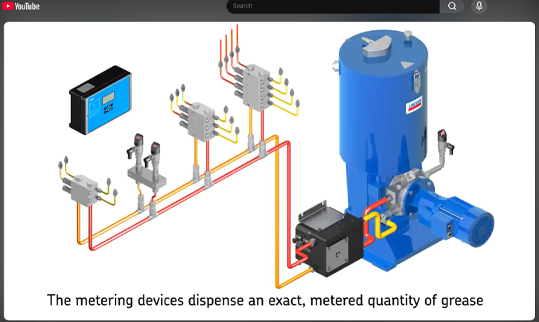

This animation presents the components of such systems and how the lubricant is supplied from a high-pressure pump via a change-over valve and metering devices to the lubrication points. Also monitoring and control options are covered. The animation shows typical applications and working conditions for dual-line lubrication systems. Take a closer look on SKF and Lincoln dual-line lubrication systems.

DUAL-LINE SYSTEMS | ELEMENTS

DUAL-LINE LUBRICATION SYSTEMS

VIEW CATALOG PDF >

LUBRICATION METERING DEVICES

Deliver preset lubricant dosages to lubrication points. For all types of lubrication systems. For oil, fluid grease and grease.

MONITORING DEVICES

Various devices that generate a visual or electrical signal. For all types of lubrication systems. Examples - switches, sensors, transmitters and valves.

CONTROL UNITS & SOFTWARE

To monitor the well function of a lubrication system. For all types of lubrication systems.

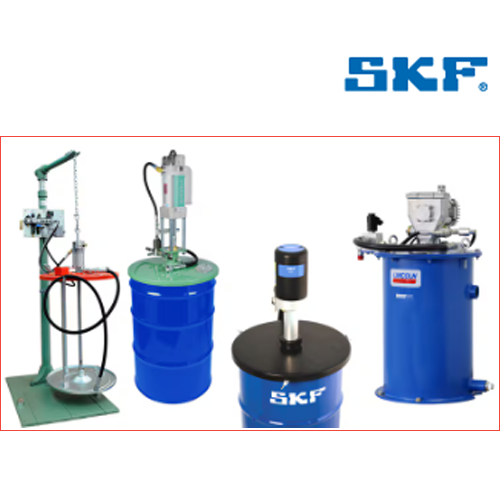

HEAVY DUTY BARREL PUMPS

Medium - and high-pressure pumps. Used for pumping grease, oil and other fluids.

FITTINGS, ACCESSORIES & COMPONENTS

Applicators, filters, fittings, pipes. For all types of lubrication systems.
