PROGRESSIVE LUBRICATION SYSTEMS

For Small- to Medium-Sized Machines that Require Continuous Lubrication

Progressive systems provide continuous lubrication as long as the pump is in operation. Once the pump stops, the pistons of the progressive metering device will stop in their current positions. When the pump starts supplying lubricant again, the pistons will carry on where they left. Therefore, the progressive circuit of one outlet of the pump will stop when only one lubrication point is blocked. The blockage serves as a means of control and forces personnel to service the system.

Only one outlet of a primary or a secondary metering device of one pump outlet can be monitored visually or electrically, depending on the chosen metering device.

SKF Lincoln Industrial | Progressive System > How it Works

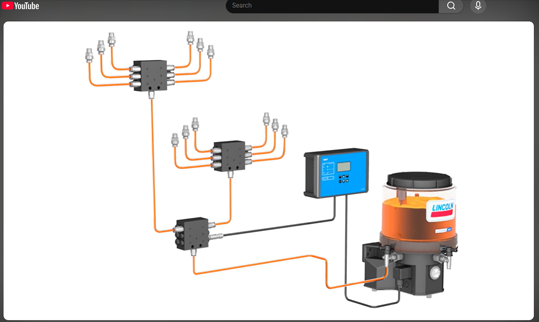

Progressive systems consist of a pump connected to at least one primary metering device. If needed, second-level metering devices can be connected to the outlets of the primary metering device to increase the number of lubricated points, depending on the operating pressure of the pump. The outlets of the primary and second-level metering devices are connected via branch lines to the lubrication points of the machine. The pump supplies lubricant to the metering devices with a pressure of up to 550 bar (8000 psi), depending on the pump model. The metering devices split the lubricant into even or predefined amounts of lubricant, depending on the metering device, that are positively displaced to the lubrication points or the inlet of a connected secondary metering device The lubricant amount provided by each outlet of the metering device depends on the type of metering device being used.

PROGRESSIVE SYSTEMS | ELEMENTS
